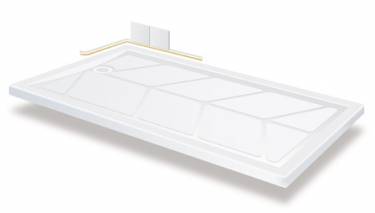

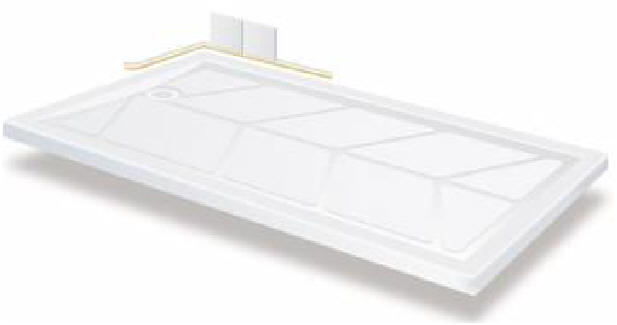

The Blackdown is one of the most popular
shower tray options when low or level access is required. High quality
construction and superior rigidly.
The
drainage aperture is positioned to enable the tray to be fully
reversible. The Blackdown shower tray is supplied with a heavy duty Solos Dallmer trap (with 50mm seal) and polished 'dome' waste cover.
|
|
Fitting is easy and the trays are suitable for
letting into the floor for level access. The Blackdown tray
is only 35mm
high presenting a very low step-up height if
surface installation is desired. An optional ramp to aid wheelchair
entry is available if required. |
|
|
The Blackdown tray
forms the basis for full cubicles with low level easy
access -
see Swift-fit cubicles |
|
 |
|
Blackdown 1 |
| |
|
|
|
| Order reference
code |
BD1 |
Click Image to enlarge |
Price: |
| Overall Dimensions |
900 x 900mm |
|
| Depth |
35mm |
£270.48 inc VAT |
| Gradient |
25mm |
|
| Handed |
No / Reversible |
Price also includes waste |
| |
|
|
| |
|
|
|
| |
|
Blackdown 2 |
| |
|
|
|
| Order reference
code |
BD2 |
Click Image to enlarge |
Price: |
| Overall Dimensions |
1000 x 1000mm |
|
| Depth |
35mm |
£270.48 inc VAT |
| Gradient |
25mm |
|
| Handed |
No / Reversible |
Price also includes waste |
| |
|
|
| |
|
|
|
|
|
|
Blackdown 3 |
| |
|
|
|
| Order reference
code |
BD3 |
Click Image to enlarge |
Price: |
| Overall Dimensions |
1100 x 710mm |
|
| Depth |
35mm |
£270.48 inc VAT |
| Gradient |
25mm |
|
| Handed |
No / Reversible |
Price also includes waste |
| |
|
|
| |
|
|
|
| |
|
Blackdown 4 |
| |
|
|
|
| Order reference
code |
BD4 |
Click Image to enlarge |
Price: |
| Overall Dimensions |
1100 x 830mm |
|
| Depth |
35mm |
£270.48 inc VAT |
| Gradient |
25mm |
|
| Handed |
No / Reversible |
Price also includes waste |
| |
|
|
| |
|
|
|
|
|
|

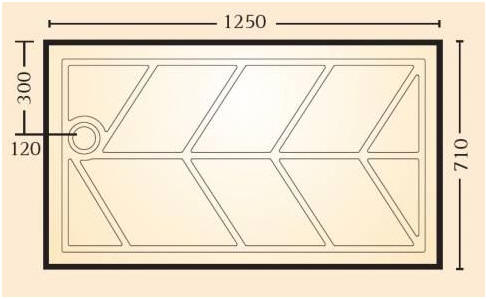

Blackdown 5 |
| |
|
|
|
| Order reference
code |
BD5 |
Click Image to enlarge |
Price: |
| Overall Dimensions |
1250 x 710mm |
|
| Depth |
35mm |
£281.49 inc VAT |
| Gradient |
25mm |
|
| Handed |
No / Reversible |
Price also includes waste |
| |
|
|
| |
|
|
|
| |
|

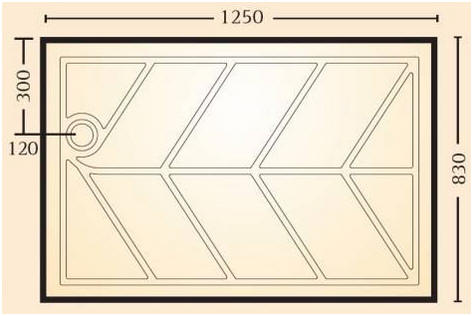

Blackdown 6 |
| |
|
|
|
| Order reference
code |
BD6 |
Click Image to enlarge |
Price: |
| Overall Dimensions |
1250 x 830mm |
|
| Depth |
35mm |
£281.49 inc VAT |
| Gradient |
25mm |
|
| Handed |
No / Reversible |
Price also includes waste |
| |
|
|
| |
|
|
|
|
|
|
Blackdown 7 |
| |
|
|
|
| Order reference
code |
BD7 |
Click Image to enlarge |
Price: |
| Overall Dimensions |
1500 x 710mm |
|
| Depth |
35mm |
£301.20 inc VAT |
| Gradient |
25mm |
|
| Handed |
No / Reversible |
Price also includes waste |
| |
|
|
| |
|
|
|
| |
|

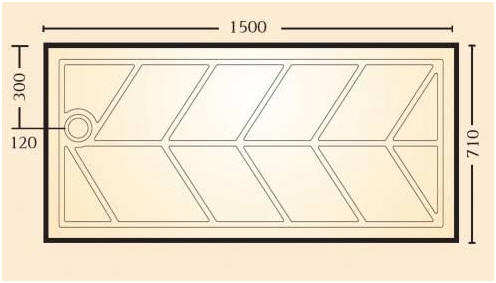

Blackdown 8 |
| |
|
|
|
| Order reference
code |
BD8 |
Click Image to enlarge |
Price: |
| Overall Dimensions |
1500 x 830mm |
|
| Depth |
35mm |
£301.20 inc VAT |
| Gradient |
25mm |
|
| Handed |
No / Reversible |
Price also includes waste |
| |
|
|
| |
|
|
|
|
|
|

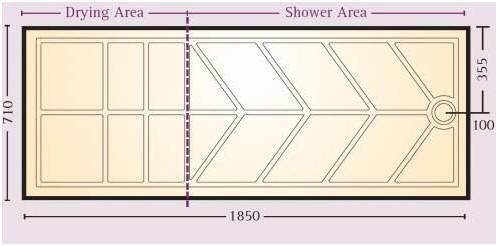

Blackdown 9 |
| |
|
|
|
| Order reference
code |
BD9 |
Click Image to enlarge |
Price: |
| Overall Dimensions |
1850 x 710mm |
|
| Depth |
35mm |
£361.38 inc VAT |
| Gradient |
25mm |
|
| Handed |
Yes / Left or Right |
Price also includes waste |
| |
|
|
| |
|
|
|
|
|
|

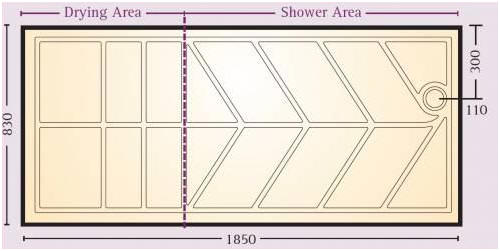

Blackdown 10 |
| |
|
|
|
| Order reference
code |
BD10 |
Click Image to enlarge |
Price: |
| Overall Dimensions |
1850 x 830mm |
|
| Depth |
35mm |
£361.38 inc VAT |
| Gradient |
25mm |
|
| Handed |
Yes / Left or Right |
Price also includes waste |
| |
|
|
| |
|
|
|
|
|
| |
