Linear floor drainage gully for wet room shower



Products > Wet room shower products > screed floor shower drainage gullies > Linear drainage gully for screed floor wet room shower



Linear Drain for screed floor wet room shower

Utilising the a unique 'waterless trap' which carriers a lifetime guarantee and BBA approval, this type of  gully presents an incredibly shallow profile - only 55mm from the base to the top of the tray when adjusted to the minimum height. This is particularly useful when retrofitting to an existing solid floor as it reduces to amount of excavation necessary.

Example of a wet room shower with linear floor drainage gully.

Other exciting features of Novellini Linear Drains include impressive flow handling capability (up to a massive 56 l/min with twin traps), an extensive size range and grill options offering stainless or inlaid tile finish.

Novellini wet room Linea Floor Drain for Screed Floor

- single outlet (Suits a TWO way fall to gully)

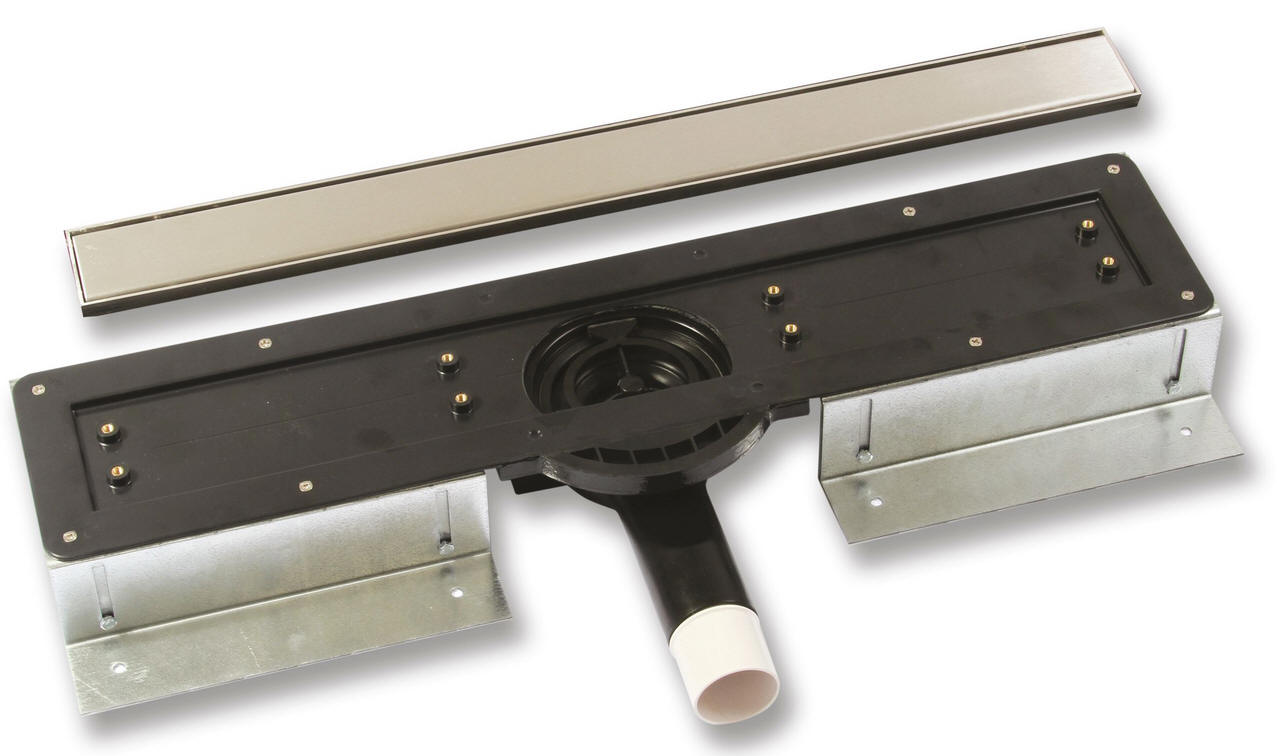

Novellini linear floor gully for a screed wet room shower floor

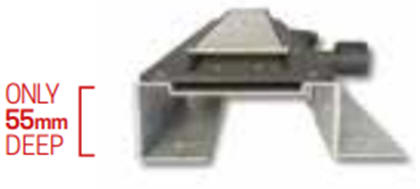

Screed floor gully. Only 55mm minimum profile height.

Description

Linear floor drain with single horizontal outlet trap.

Supplied with grill & frame of your choice , Max flow rate 29 l/min



Features of the Linear floor drain

  • Height adjustable 55-88mm with height adjustable grill

  • BBA Approved

  • Lifetime guarantee

  • 360 degree rotatable water position

  • Ideal for creating two or more fall gradients

  • Waterless trap

  • Easy to clean and replace trap

  • Bespoke design available

  • Choice of grill finishes and colour options

  • Drain width 58mm, gully cover from 600mm - 2000mm.


Grill length Base Code Grill G1 Grill G3 Grill G1H Grill G3H
    inc VAT inc VAT inc VAT inc VAT
600mm CD60 £352.56 £407.16 £471.90 £534.95
700mm CD70 £361.92 £418.86 £522.60 £586.56
800mm CD80 £389.22 £444.60 £522.60 £586.30
900mm CD90 £395.46 £450.84 £522.60 £586.30
1000mm CD100 £425.88 £479.70 £585.78 £649.74
1100mm CD110 £442.26 £495.30 £611.52 £674.70
1200mm CD120 £453.96 £510.90 £585.78 £649.74
1300mm CD130 £463.32 £518.70 £611.52 £674.70
1400mm CD140 £475.02 £529.62 £642.72 £705.90
1500mm CD150 £486.72 £541.32 £642.72 £705.90
1600mm CD160 £505.44 £550.68 £700.44 £755.04
1700mm CD170 £505.44 £550.68 £700.44 £755.04
1800mm CD180 £529.62 £577.20 £729.30 £787.02
1900mm CD190 £529.62 £577.20 £729.30 £787.02
2000mm CD200 £555.36 £604.50 £760.50 £819.78


  • Price includes linear waste outlet,  1 x waterless trap and the cover of your choice.

  • This model installs away from wall with a fall in floor front and rear of grill.

Order





Novellini wet room Linea Floor Drain for Screed Floor

- twin outet (Suits a TWO way fall to gully)

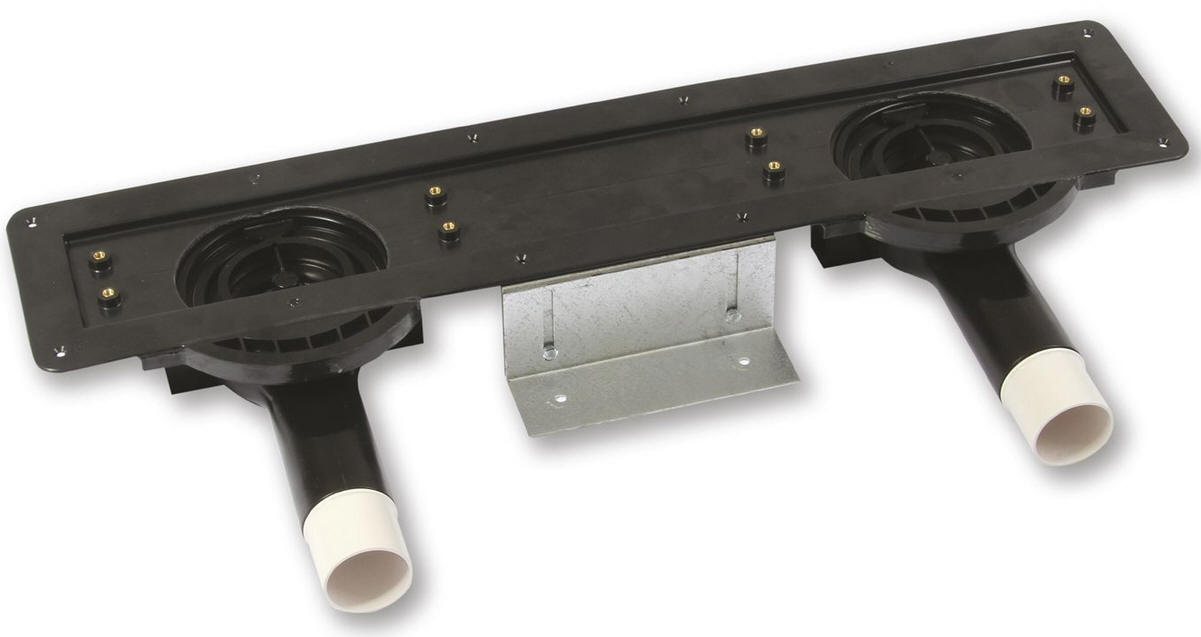

Twin outlet high flow rate linear floor drain for screed wet room shower floor

Description

Linear floor drain with twin horizontal waterless outlet traps.

Supplied with frame & grill of your choice, Max flow rate 56 l/min



Features of the Linear floor drain

  • Height adjustable 55-88mm with height adjustable grill

  • BBA Approved

  • Lifetime guarantee

  • 360 degree rotatable water position

  • Ideal for creating two or more fall gradients

  • Waterless traps

  • Easy to clean and replace traps

  • Bespoke design available

  • Choice of grill finishes and colour options

  • Drain width 58mm, gully cover from 600mm - 2000mm.


Grill length Base Code Grill G1 Grill G3 Grill G1H Grill G3H
    inc VAT inc VAT inc VAT inc VAT
600mm CDDT60 £436.02 £490.62 £564.72 £627.90
700mm CDDT70 £450.06 £506.22 £616.20 £680.16
800mm CDDT80 £471.90 £528.06 £616.20 £680.16
900mm CDDT90 £479.70 £535.08 £616.20 £680.16
1000mm CDDT100 £508.56 £563.16 £680.16 £742.56
1100mm CDDT110 £514.80 £570.18 £680.16 £742.56
1200mm CDDT120 £531.96 £588.12 £705.90 £768.30
1300mm CDDT130 £535.86 £591.24 £705.90 £768.30
1400mm CDDT140 £548.34 £603.72 £733.98 £796.38
1500mm CDDT150 £558.48 £614.64 £733.98 £796.38
1600mm CDDT160 £577.98 £629.46 £787.80 £849.42
1700mm CDDT170 £577.98 £629.46 £787.80 £849.42
1800mm CDDT180 £601.38 £655.20 £879.84 £1,375.14
1900mm CDDT190 £601.38 £655.20 £879.84 £1,375.14
2000mm CDDT200 £625.56 £681.72 POA POA




  • Price includes linear waste outlet, 2 x waterless traps

  • This model installs 'away from wall' designed for a fall at front and rear of grill.

Order









Novellini concrete floor Linear wet room shower waste grill and trim options

Order reference code

G1

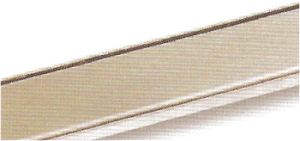

Stainless steel linear waste outlet grill

The G1 standard grill is a stainless plate that fits along the length of waste outlet (drain) up to which your wet room shower floor may be tiled.

Unless specified to the contrary this grill will be supplied with your order.

Order reference code

G3

The G3 grill incorporates a tiling rebate in to which you may inlay a tile to match the surrounding shower floor. Click here for example.

When specified, this grill will be supplied in place of the standard G1 grill. An additional cost applies for this option. (NB: Tile not included!)

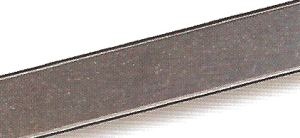

Linear waste outlet cover with rebate for tile insert



The G3, G1H and G3H grills are options. Please see price table.

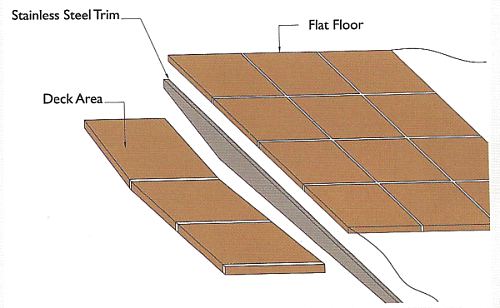

Stainless steel trim detail

With concrete floor Linear shower waste drains, stainless steel trims may be obtained separately (at additional cost) to trim the area to the left and right of the deck - if required. The trim finishes neatly any edges that may exist as a result of the height differential between the slope of the deck and the surrounding floor.

Stainless steel trim detail for the Novellini Duo Deck wet room floor flormer tray

Tile trim (Code / Length)

Price inc VAT


NWFSS1 - 300/600mm

50.40

NWFSS2 - 600/600mm

56.70

NWFSS3 - 300/900mm

56.70

NWFSS4 - 300/1200mm

70.20

NWFSS5 - 300/1500mm

78.30

NWFSS6 - 900/900mm

78.30

NWFSS7 - 300/700mm

56.70


A delivery charge will apply to this product if ordered separately
