Against the wall linear waste gully for a screed floor



Novellini 'Against Wall' linear wet room shower drainage gully for screed floor

Image shows 'Against wall' linear gully with 'tile-in' G3 gully cover.

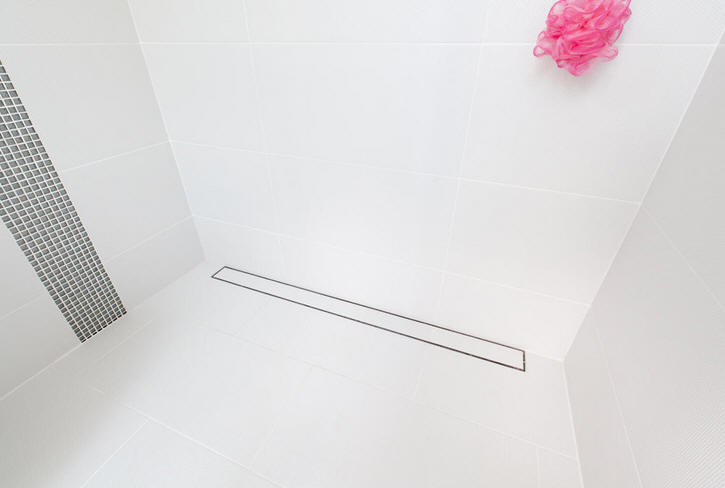

Novellini 'Against the wall' solid floor linear drains install tight to the adjacent wall, creating a floor with just a single slope falling towards the grill.

The unique 'waterless trap' carriers a lifetime guarantee and BBA approval. These gullies present an incredibly shallow profile - only 55mm from the base to the top of the tray when adjusted to the minimum height. This is particularly useful when retrofitting to an existing solid floor as it reduces to amount of excavation necessary.

Against the wall' Linear gullies are available with a choice of one or two waterless traps for added flow potential.



Novellini Linear wet room shower gullies offer you a choice when it comes to finish.

  1. G1 The standard gully and gully frame (shown in the image below) are stainless steel.

  2. G3 This option has a stainless steel gully frame, but the gully cover has a rebate into which you can tile to match the surrounding floor.

  3. G1H This option has a black gully frame and black gully cover.

  4. G3H has a black gully frame with a rebated tile-in gully cover.

Simply choose the gully length and finish from the price table below. A typical order code might look something like this (Base code + Grill type)...

CWD60G1 = 600mm wide 'against wall gully' with stainless grill

Screed floor gully. Only 55mm minimum profile height.

Exciting features of Novellini Linea Drains include impressive flow handling capability (up to a massive 56 l/min), an extensive size range, grill options offering stainless or inlaid tile finish and an option to have the drain positioned tight to the adjacent wall - The Linear Wall Drain.

Novellini wet room Linea Wall Drain for Screed Floor

- single outet (for a ONE way fall towards the wall line)

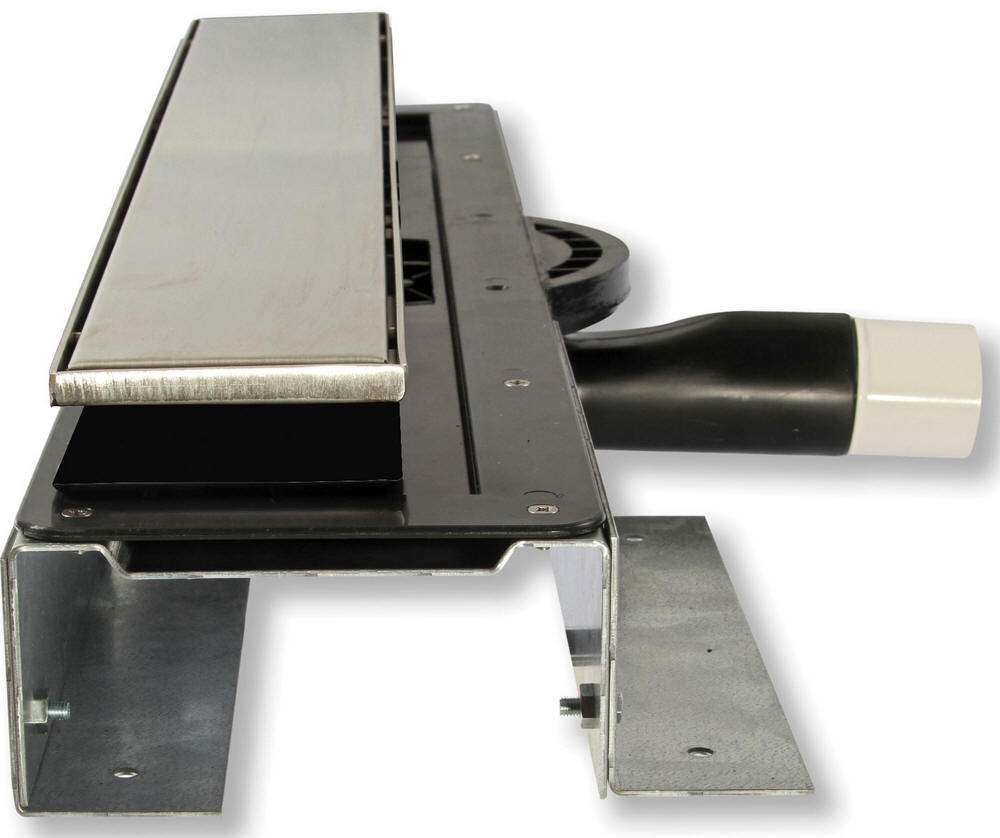

Linear wall gully for wet room shower where the drain is against the wall line.

Against the Wall' Linea Floor Drain for Screed Floor prices
 Single trap, Max flow rate 29 l/min
Grill length Base Code Grill G1 Grill G3 Grill G1H Grill G3H
  inc VAT inc VAT inc VAT inc VAT
600mm CWD60 £394.68 £450.06 £550.68 £614.64
700mm CWD70 £408.72 £464.10 £602.94 £666.12
800mm CWD80 £431.34 £486.72 £602.94 £666.12
900mm CWD90 £451.62 £507.00 £602.94 £666.12
1000mm CWD100 £467.22 £522.60 £659.10 £723.06
1100mm CWD110 £486.72 £541.32 £659.10 £723.06
1200mm CWD120 £515.58 £571.74 £687.18 £751.14
1300mm CWD130 £535.86 £591.24 £687.18 £751.14
1400mm CWD140 £548.34 £603.72 £717.60 £780.78
1500mm CWD150 £558.48 £614.64 £717.60 £780.78
1600mm CWD160 £572.52 £624.00 £780.78 £842.40
1700mm CWD170 £572.52 £624.00 £780.78 £842.40
1800mm CWD180 £599.82 £653.64 £812.76 £878.28
1900mm CWD190 £599.82 £653.64 £812.76 £878.28
2000mm CWD200 £628.68 £684.84 £847.86 £915.72

           Order


Features

  • This model installs tight to adjacent wall - one way fall towards grill

  • single Waterless trap

Novellini wet room Linea Wall Drain for Screed Floor

- twin outet (for a ONE way fall towards the wall line)

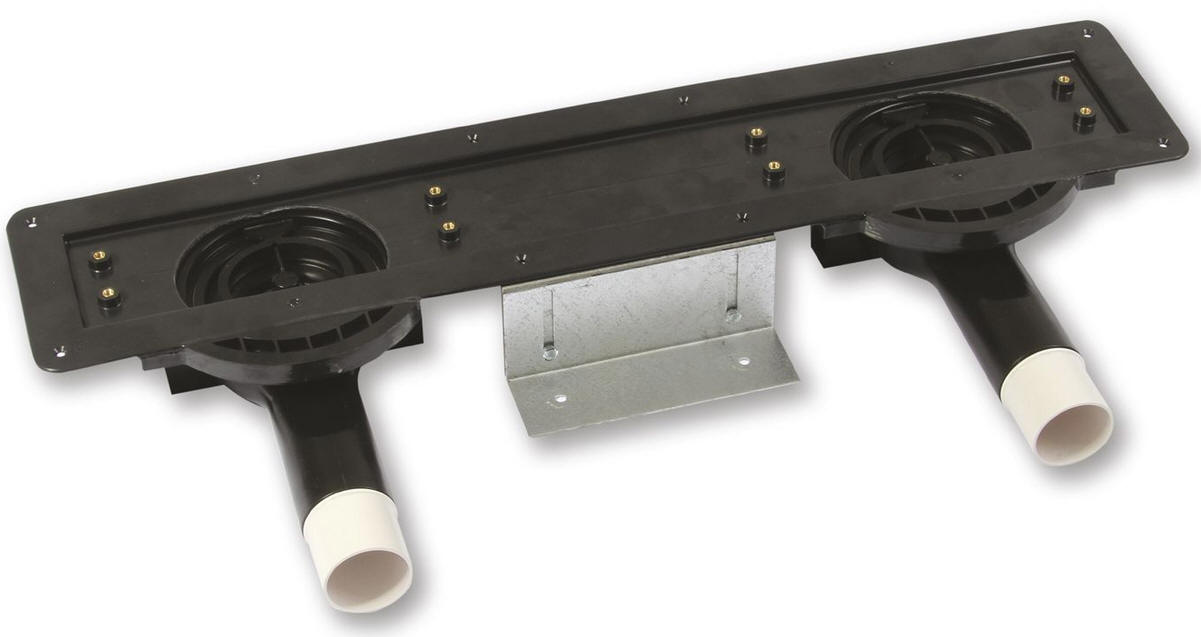

Twin waste outlet option for the wet room shower linear wall drain

'Against the Wall' Linea Floor Drain for Screed Floor prices
Double trap, Max flow rate 56 l/min
Grill length Base Code Grill G1 Grill G3 Grill G1H Grill G3H
    inc VAT inc VAT inc VAT inc VAT
600mm CWDDT60 £471.90 £528.06 £645.06 £708.24
700mm CWDDT70 £485.94 £542.10 £696.54 £760.50
800mm CWDDT80 £508.56 £563.16 £696.54 £760.50
900mm CWDDT90 £519.48 £574.86 £696.54 £760.50
1000mm CWDDT100 £544.44 £599.04 £753.48 £816.66
1100mm CWDDT110 £563.94 £618.54 £753.48 £816.66
1200mm CWDDT120 £580.32 £634.92 £781.56 £844.74
1300mm CWDDT130 £588.12 £641.94 £781.56 £844.74
1400mm CWDDT140 £599.04 £655.20 £811.20 £874.38
1500mm CWDDT150 £609.96 £665.34 £811.20 £874.38
1600mm CWDDT160 £650.52 £696.54 £873.60 £929.76
1700mm CWDDT170 £650.52 £696.54 £873.60 £929.76
1800mm CWDDT180 £676.26 £729.30 £904.80 £969.54
1900mm CWDDT190 £676.26 £729.30 £904.80 £969.54
2000mm CWDDT200 £699.66 £749.58 £932.88 £992.16

           Order


  • This model installs tight to adjacent wall - one way fall towards grill

  • twin Waterless traps
