Products > Shower Enclosures > Shower pods > Coram Shower Pods > 950mm corner quadrant shower pod

950 self contained quadrant shower pod

All in one shower pod with leak-free guarantee


DISCONTINUED PRODUCT

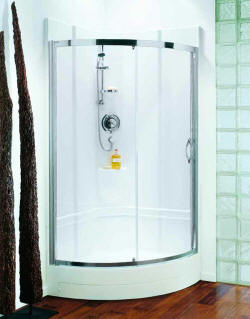

Large leak free one piece quadrant shower pod

The Coram 950 Quad Shower Pod is impressive with the space it offers internally. Available with a polished silver curved sliding door. The pod is also supplied with a high performance thermostatic bar shower as standard with an option to upgrade to a sequential shower (see below).

Coram 950 quadrant leak free shower pod

  • 980mm x 980mm footprint

  • Now available as 2275mm high or 2130mm high

  • 25 year guarantee (Details)

  • Polished Silver sliding door

  • Thermostatic 'bar type' shower equipment included (Can be upgraded to a recessed sequential valve)

  • Moulded bottle shelf

  • Easy installation

  • British designed & built

  • Rigid base with Waterguard protection and access panel for easy maintenance

  • Premier Pods feature luxury door frames and finishes

  • Fitting information

SPECIAL OFFER PRICES on CORAM 950 Quadrant shower pods

Pod size

Frame colour

Our Price

950 Quad Premier Pod

Polished Silver




Sequential Mixer Valve (see below)



Chrome Waste



Granite finish

()



Coloured finish





Order

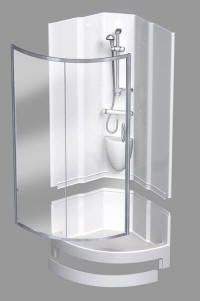

Coram leak free 950 quadrant shower pod diagram

Read more about shower pods





25 year manufacturer warranty

Coram shower pods - Options explained

Shower valve options in Coram shower pods

Coram shower pods are supplied with a thermostatic shower mixer valve. A 'Bar type' thermostatic shower mixer valve is included in the purchase price. However, an 'upgrade' to a concentric type valve is available at additional cost, or the shower pod can be supplied without equipment allowing you to install something else of your choosing (an electric shower for example).

Shower valve specifications

Bar type thermostatic shower mixer valve, hose, riser rail and shower handset

'Bar type' thermostatic mixer valve

Recessed sequential thermostatic shower mixer valve, hose, riser rail, and shower handset

Sequential Concentric recessed thermostatic mixer valve

The 'Bar type' valve operates to a TMV2 level of control. It's operational pressure range is 0.25 bar - 5 bar (suitable for lower pressure, mains pressure  and pumped systems). Delivery flow rate range is between 5 and 13 litres per minute. Included as standard.

The 'Sequential type' valve operates to a TMV3 level of control. It's operational pressure range is 0.1 bar - 10 bar (suitable for lower pressure, mains pressure and pumped systems). Delivery flow rate range is between 14 and 35 litres per minute. Equipped with anti-scald rapid cut-off.


So, what is a 'Concentric sequential type' shower valve?

The term 'concentric' essentially means the valve operates in a rotary fashion around a central spindle. A sequential valve, as the name might suggest, operates in a 'sequence' of events. As the operator rotates the handle the valve opens to allow a full flow of water. The temperature of the output water is controlled by continuing to rotate the valve handle (subject to supplies being at temperature), the water temperature increasing the further the valve is rotated. Being a thermostatic valve, once set at your desired temperature the valve will hold the output temperature stable (no nasty hot or cold surprises if other outlets or appliances in the house call for water!)

The sequential valve offers 'easy to grip' single lever operation and a good visual reference to favourite temperature setting.
